Available in the following colours

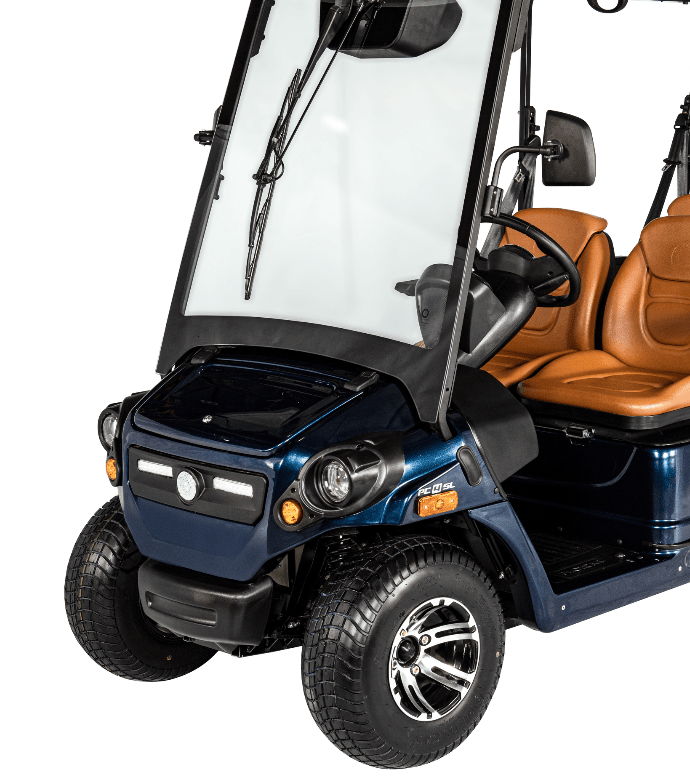

PiloTCar PC-4 Features
Power
Motor Power
4 kW (5.44 hp) Rated
— 9.60 kW (13 hp) Peak
6 kW (8.20 hp) Rated
— 12.46 kW (16.95 hp) PeakBattery
Battery
6X8V TROJAN T-875: (8.16 kWh)
Lithium Battery Package
Charge Unit
Lead-Acid Battery Package: DELTA-Q QuiQ 1000 Onboard
Charge Unit: 110-220 VAC@8 1A/48V
Lithium Battery Package: OVARTECH 3.3 kW Onboard
Charge Unit: 85-265 VAC@16A 40A/48VMotor Control Unit
Motor Control Unit
AC: CURTIS (350 A-450 A)
Steering and Suspension System
Steering
Self-compensating double reduction helical rack-and-pinion
Suspension Front
Fully independent McPherson style strut suspension
Suspension Rear
Semi independent, swing arm with coil springs over hydraulic shock absorbers
Brake System
Service Brake
Self adjusting mechanical, rear wheel drum brakes and regenerative brake
Option: 4-wheel hydraulic drum brake system
Parking BRake
Foot actuated multi-lock parking brake
Option: Elektromagnetic parking brake
Body
Body
Naturally colored Thermoplastic ABS
White, Midnight Blue, Red, Black
Chassis
Automotive style steel frame with high corrosion resistance
Sanding /E-coating/ Static Wet Paint
Performance
Speed
Forward: 15 mph - 25 mph (24 kph - 40 kph)*
Reverse 5 mph (8 kph)
Range
Lead-Acid Battery Package
37 mi (60 km) **
Lithium Battery Package
55.5 mi (90 km) **
Max Gradeability: 25%
Charge Time
Lead-Acid Battery Package
80% - 6 hrs
100% - 8 hrs
Lithium Battery Package
80% - 4 hrs
100% - 6 hrs
General
Curb Weight
Lead-Acid Battery Package
1036 lb (470 kg) *
Lithium Battery Package
886 lb (402 kg) *
Passenger Capacity
1+1 Passenger
1+3 Passenger
Capacity
Load : 881 lb (400 kg)
Tow: 1102 lb (500 kg)
Tyre Dimensions
18 x 8.5-8 (6 PLY)
20.5 x 8-10 (6 PLY)
22 x 9.50-10 Off-Road Tyre **
