Cushman® Shuttle™️ 2

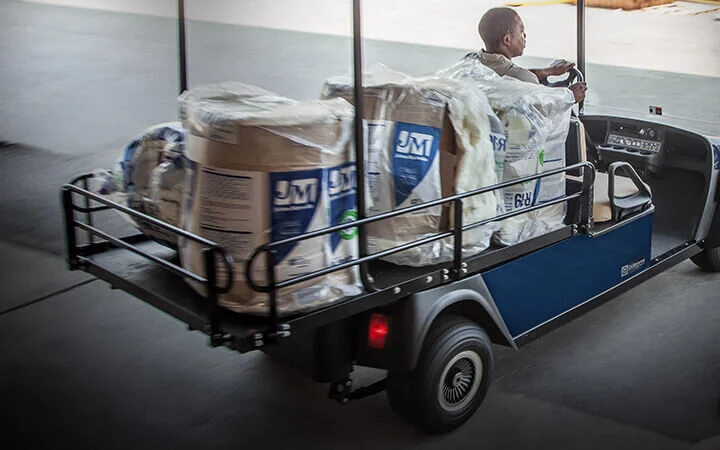

The Cushman® Shuttle™️ 2 is built for hauling big loads and with a 6 foot cargo deck, optional side rails whether you're hauling tools and supplies or luggage and catering, the Shuttle™ 2 personnel transport vehicle makes sure that you're driven to get it done right.
Shuttle™️ 2 Electric
72V Electric Drivetrain
454kg Vehicle Load Capacity
20.9ft2 Cargo Deck
2 Passenger Seating
Shuttle™️ 2 Petrol
13.5-hp EFI Gas Engine
544kg Vehicle Load Capacity
20.9ft2 Cargo Deck
2 Passenger Seating
Available in the following colours
Cushman SHUTTLE 2 Highlights
CUSHMAN SHUTTLE 2 Features
Features
INTERIOR
Cup/Radio Holder
Foot or Hand Operated Park Brake
Light Switch
Fuel/Battery Gauge
Hand Rails
Ergonomic Seating
EXTERIOR
Head Lights
Tail Lights
Nudge Bar
Folding Screen
Full Length Roof
Cargo area
Options
BATTERY
12v Maintenance Free (Petrol Model)
72v Trojan Power Pack (Electric Model)
BODY COLOuRS
Hunter Green, Champagne or Patriot Blue
Optional Colours: Red, Orange, Yellow, Black, Charcoal
SEATS
Bench Seat: White or Beige
RIMS
18 x 8.50 - 8 Golf Tyres
ADDITIONAL OPTIONS
3 Side Enclosure
Mirrors
Lap Seat Belts
X-Tra Traction Tyres
Specifications
MEASUREMENTS
Overall length: 2330 mm/ 92"
Overall width: 1210 mm/ 48" (excl. mirrors)
Overall width: 1540 mm/ 58" (incl. mirrors)
Overall height: 1850 mm/ 73"
Overall length +2: 2800mm / 110”
Overall height OFF-X: 2000mm / 79”
Overall length OFF-X: 2510mm / 99”
Overall length OFF-X +2: 2760mm / 109”
Overall width OFF-X: 1350mm / 53” (excl. mirrors)
Track width front: 900mm / 35”
Track width rear: 1000mm / 39”
Track width front OFF-X: 1060mm / 42”
Track width rear OFF-X: 1110mm / 44”
POWER SUPPLY / DRIVE
Motor: High efficient 3-phase AC motor
Output rating:3 kW (4 Hp)
Peak power: 11 kW (15 Hp)
Motor control unit: Curtis 375 amp
Batteries: Lithium Ion (Lead Acid optional)
Charger: Onboard Delta Q charger
PERFORMANCE
Max forward speed:24-30 km/h /15-19 mph
Max reverse speed: 11 km/h /6 mph
Range (up to): 64 km/ 40 miles (depending on speed, use, weather etc.)
Charge time: Approx. 7 hours (for full charge)
Dual-circuit hydraulic braking system on all wheels
Parking brake: Automatically engaged electromagnetic parking brake
CHASSIS
Frame: Premium E-Coated steel
Rack and pinion steering
Front suspension: Double wishbone suspension with automotive ball joints and coilovers
Rear suspension: Live rear axle mounted with trailing links, Panhard rod and coilovers
Robot-welded aluminum roof structure
GENERAL
Weight: 550kg / 1200 lbs
Weight +2: 580kg / 1279 lbs
Weight OFF-X: 580kg / 1279 lbs
Weight OFF-X+2: 610kg / 1345 lbs
Tire size: 205-50-10 or 205-30-12
Tire size OFF-X (23x10.5-12)
Payload capacity (all models): 350 kg / 770 lbs
WARRANTY
Standard 3 years limited vehicle warranty
